Technical Process:
Fabric Feeding → Fabric Expander Roller → Overfeeding System → Drying Chamber → Fabric Exit System

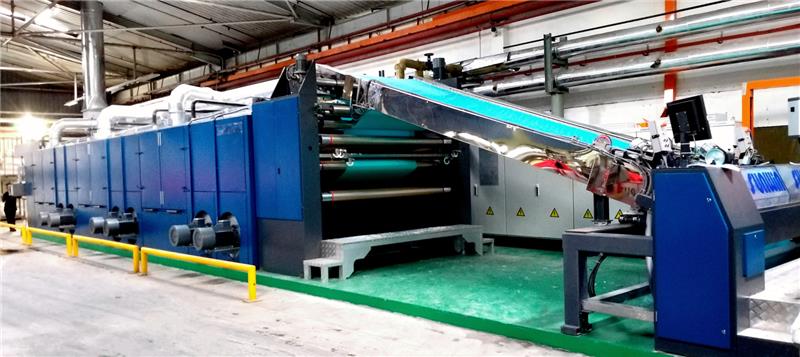

Jumbo Capacity Relax Dryer
Working width: 1800mm- 3600mm
Nos of chamber: 2-6 chambers
Heating system: Natural Gas, Thermal Oil Or Steam
Machine speed: 5-80m/min
Number of Passes:
3 passes of conveyor belt for fabric relax drying process.
Machine consist of:
1. Fabric feeding frame:
- Fabric guiding system
- Fabric centering system
- Fabric spreading device
2. Fabric Padder
- Squeezing roller is manufactured from complete stainless steel with 2 squeezing roller
- One of the roller is fixed on the main frame of foulard and the other one is movable by means of pneumatic pistons horizontally.
3. Machine Entry Fabric Feeding System.
- Fabric entry unit with operator platform
- Top and bottom overfeeding rollers with separate speed and overfeeding control
- Manually controlled weft straightening unit with 2 individual opener roller.
4. Fabric pinning entry
- Fabric edge pinning system with separate right/ left speed adjustment.
- Fabric edge sensor
- Fabric pinning wheels
- Chain width control system
5. Infra Red Drying System:
- Edge of fabric is dried after glue application in order to keep the process speed constant.
6. Feeding Unit
- The feeding facility is in fact the installation preshrinkage zone.
- The feed frame is bolted onto the 1st drying chamber frame
7. Drying Chamber
- Drying chambers are 2 meters long each are located right after the feed side.
- The nozzle lateral layout and the large quantity of air allow
- The air nozzles can also be readily removed and cleaned.
- The chambers are made of strong and robust welded structural steel and their outside walls are built of special insulation panels with 100mm thickness.
8. Fabric Exit System
- Wooden stripped conveyor belt for fabric exit.
- Fabric plaiter device with inverter control system
FAQ:
1. Q: May i know which payment will be accepted by your company?
A: So far 100% T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
2. Q:About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
A: The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
3. Q:Can the machine be customized as our need?
A: Definitely, all of our machine shall designed according to our customer requirement.
