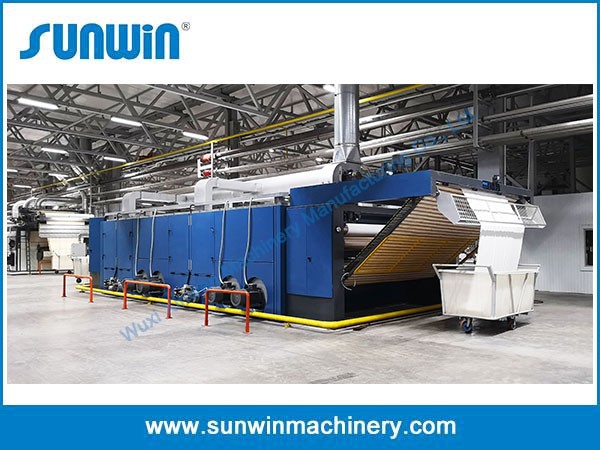

Three Layer Loose Dryer Machine

3 Pass Fabric Relax Dryer Textile Drying Machine is a kind of equipment used to dry fabrics and other materials. Xinwen Machinery professionally developed 3 Layer Relax Drying Machine mainly uses hot air circulation to remove moisture from fabrics. Its "loose" feature means that during the drying process, the fabric is in a relatively relaxed state and will not be subjected to greater tension like in some tight drying equipment, which can effectively avoid problems such as fabric deformation and shrinkage.

1. 3 Pass Fabric Relax Dryer machine width: 1800mm- 3600mm

2. Running speed: 3-50m/min

3. Three-layer Loose Dryer machine for fabrics use hot oil heating system: Natural Gas Or Steam Or Thermal Oil

4. Chambers length: 2 meters per chamber

5. Fabric feeding: Guide roller, Expander roller, overfeed roller

6. Passes: 3 passes relax dryer

7. Conveyor: Teflon coated conveyor belt

When the Three-layer Tensionless Textile Fabric Drying Machine is working, hot air is transported to the drying box through the fan, and the hot air circulates in the box and fully contacts the fabric. The moisture in the fabric evaporates into water vapor due to heat, and then is discharged from the drying box through the dehumidification system, thereby achieving the purpose of drying the fabric.

3 Layer Relax Drying Machine is used in the textile printing and dyeing industry
In the post-processing process of textile printing and dyeing, the fabric needs to be dried after dyeing, washing and other processes. The three pass warp knit fabric tensionless dryer machine can handle various natural fiber (such as cotton, linen) and chemical fiber (such as polyester, nylon) fabrics well. For example, for pure cotton fabrics, using this dryer in the drying link after printing can ensure the integrity of the printed pattern and the softness of the fabric.

3 Pass Fabric Relax Dryer is used in towel and bath towel production
Towels and bath towels and other products have high requirements for fluffiness. 3 Pass Fabric Drying Machine can keep the fibers of towels and bath towels loose during the drying process, and the dried products have good water absorption and fluffy feeling. And the drying requirements of towels and bath towels of different specifications can be met by adjusting parameters such as drying temperature and time.
